SageMaker Capacity-Aware Inference: Surviving GPU Shortages Without Manual Endpoint Retries

A real-time AI endpoint that fails before serving its first request is not an inference platform. It is a capacity bet. On May 4, 2026, SageMaker AI added instance pools for inference endpoints so teams can rank fallback instance types instead of manually retrying endpoint creation when GPU capacity is tight.

That is the useful angle for an engineering article. The feature is not interesting because a vendor shipped a checkbox. It is interesting because it changes how a team investigates, rolls out, audits, or operates a system when nobody has time for a research project during an incident. For adjacent background, keep these BitsLovers guides nearby: SageMaker versus Bedrock inference decisions, AI hardware cost and performance tradeoffs, AI workload operations on Kubernetes, managed AI platform comparison, and observability patterns for AWS services.

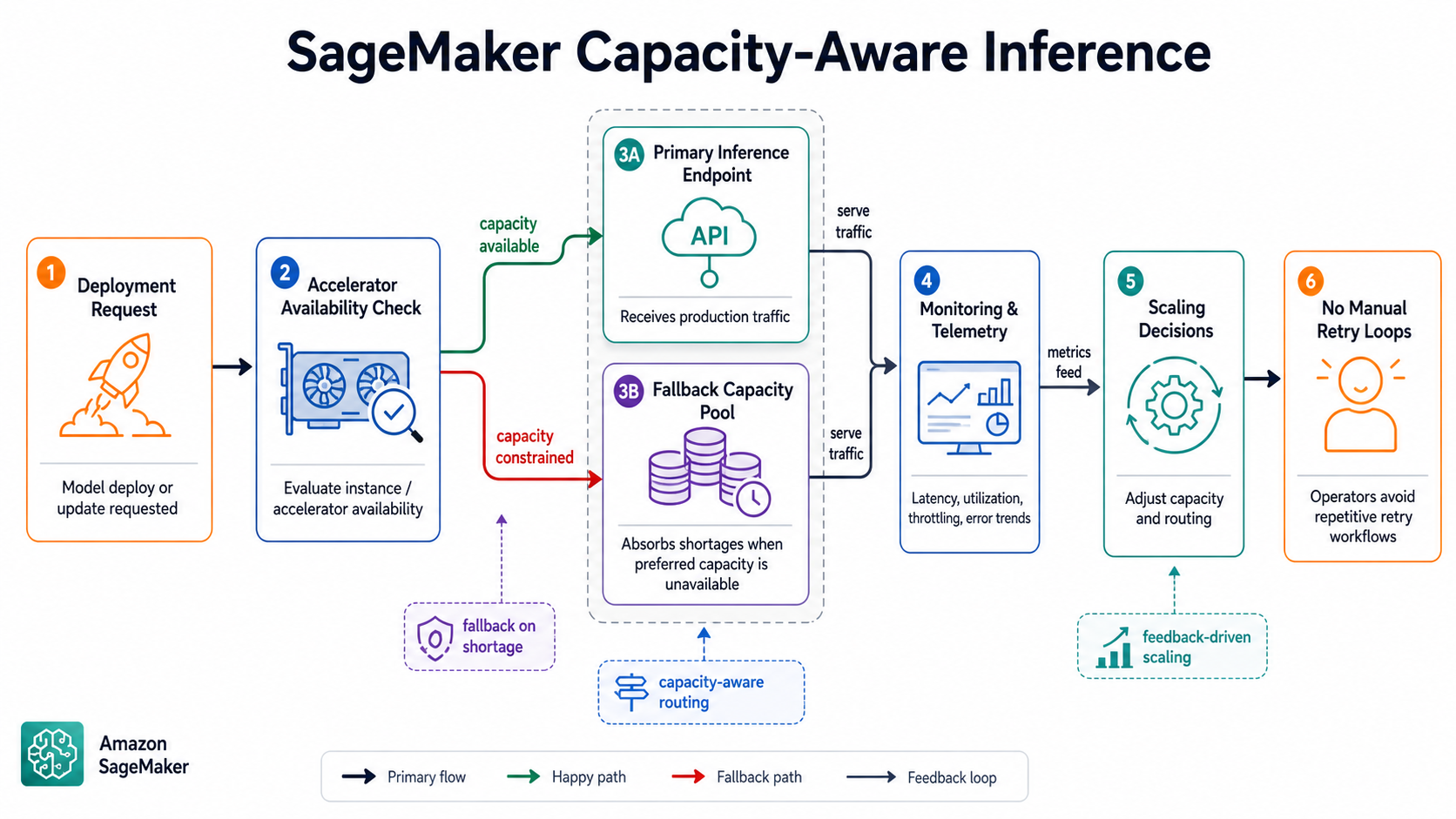

The workflow above is the shape I would use in a platform review. Start with the thing that changed, connect it to an owner and a control, then decide where the operational evidence lands. If the evidence is not searchable during an incident, the architecture is still mostly hope.

What Changed

• SageMaker AI now supports capacity-aware instance pools for new and existing inference endpoints.
• You can define an ordered list of instance types. The endpoint tries priority 1 first and falls back when capacity is unavailable.
• AWS documentation says instance pools support real-time and asynchronous endpoints, single-model endpoints, and inference components.
• The ordered list can contain up to five instance types for a production variant.
• CloudWatch metrics include an InstanceType dimension for per-hardware visibility.

The first mistake is to treat this as a product-tour post. Product tours age badly. The durable question is narrower: what new operating move does this unlock, what new risk does it introduce, and where should a real team draw the boundary?

The Old Failure Mode

The old deployment loop was ugly. Pick p5.48xlarge, wait, hit Insufficient Capacity, edit the endpoint config, try g6, wait again, maybe resize the model, and repeat. During auto scaling, the failure mode was worse because the endpoint could keep retrying the constrained type while traffic was still rising.

The human cost matters here. A senior engineer can work around weak platform design by remembering where the logs, policies, dashboards, or state files live. A team cannot scale that memory. Once there are three shifts of on-call coverage, multiple application owners, and several environments, undocumented operator knowledge becomes a reliability risk.

The Operating Model I Would Use

1. Define a ranked pool of instance types based on latency target, GPU memory, regional availability, and cost ceiling.
2. Prepare one model configuration per hardware class when memory, tensor parallelism, or quantization requirements differ.
3. Use SageMaker inference recommendations where manual hardware tuning would slow rollout.
4. Track per-instance-type latency, throughput, GPU utilization, and error rates after deployment.
5. Document the emergency fallback quality level so product teams know what changes under constrained capacity.

This model is intentionally boring. Boring is good when the work touches production. The job is not to prove that the newest feature works in a demo account. The job is to make sure it still works after a rushed deployment, a partial rollback, a permission change, and a 3 AM incident where the person responding did not build the system.

The Numbers That Shape The Design

These numbers are not trivia. They decide how far you can push the pattern before it becomes noisy, expensive, or dangerous. A limit, a price, or a support boundary should change the architecture. If it does not, the team probably has not decided what the number means yet.

Practical Setup Pattern

The first implementation should be small enough to throw away. I would start with one service, one environment, one owner, and one rollback path. Then I would make the pattern repeatable.

aws sagemaker create-endpoint-config --endpoint-config-name llm-prod-v2 --production-variants file://variant-with-instance-pools.json
aws sagemaker update-endpoint --endpoint-name llm-prod --endpoint-config-name llm-prod-v2
aws sagemaker describe-endpoint --endpoint-name llm-prod

Do not copy these commands into production without changing names, ARNs, Regions, retention, and IAM scope. They are here to make the moving parts concrete. The real work is deciding which role may run the command, which account owns the evidence, and how the next engineer proves the control still works.

Architecture Review Checklist

The checklist is deliberately practical. It turns a launch announcement into a production decision. A good platform team should be able to answer those six questions before adopting anything account-wide.

Security, Cost, And Reliability Guardrails

Security guardrails start with least privilege, but they do not end there. The control should be visible in CloudTrail or an equivalent audit path. The resource should have owner metadata. Any generated evidence should land somewhere the security or platform team can query after the application team has moved on.

Cost guardrails need a unit. For some topics that unit is data scanned. For others it is data events delivered, GPU instances running, policy evaluation volume, or endpoint replicas. The unit matters because a dashboard labeled “cost” does not help during design review. A design review needs a sentence like this: “If we enable this on every production bus, the cost scales with event volume, so we will start with these three buses and review the first seven days of usage.”

Reliability guardrails are about failure behavior. If the new control fails closed, deployments may stop. If it fails open, evidence may be missing. If it falls back to a lower-quality path, latency or accuracy may change. Write that down. The most expensive incidents often come from controls that behaved exactly as configured but not as imagined.

Gotchas The Vendor Page Will Not Emphasize Enough

• Fallback hardware is not automatically equivalent. A model that fits on a high-memory multi-GPU instance may need quantization or a different serving config on a smaller fallback.
• Mixed fleets complicate latency SLOs. A p5 and a g6 path may both be healthy but have different token throughput.
• The cheapest fallback can become the most expensive choice if it forces more replicas or misses latency goals.
• Capacity-aware inference is not multi-region resilience. It helps inside an endpoint capacity decision, not across every regional failure mode.

None of these gotchas make the feature bad. They make it real. The difference between a lab demo and a production platform is that production has old resources, odd exceptions, permissions nobody wants to touch, and dashboards that were built before the current team existed.

Decision Matrix

My bias is to adopt narrowly first. The fastest way to ruin a good platform feature is to make it mandatory before the team knows the failure modes. The second fastest way is to leave it optional forever. Treat the first rollout as a test of the operating model, not the service announcement.

Rollout Plan

1. Pick one production-like environment where the blast radius is real but controlled.
2. Write down the owner, rollback path, alert owner, expected cost driver, and failure signal before enabling anything.
3. Run a narrow test with a named service or namespace. Avoid account-wide switches on day one.
4. Capture before-and-after evidence: latency, cost, error rate, query speed, finding volume, or deployment success rate.
5. Convert the experiment into a runbook only after the team can explain what changed and what did not change.
6. Add the final guardrail to CI, Terraform, CDK, Helm, admission policy, or account automation so the pattern survives the next deployment.

That last step is the one people skip. A pattern that depends on someone remembering to repeat it is not a platform pattern. It is a good intention with a half-life.

What To Measure

• time to first useful answer during an incident
• number of manual console clicks removed from the workflow
• new AWS spend created by the control
• false-positive or false-scope rate
• percentage of resources with correct owner and environment tags
• rollback time when the feature causes noise or failure

The right metric depends on the post topic, but every useful rollout should make one thing measurably better. If it does not reduce investigation time, reduce risky access, improve deployment success, improve capacity survival, or reduce manual work, it may still be interesting, but it is not yet worth standardizing.

When I Would Not Use It

I would not use this pattern as a blanket default on day one. I would also avoid it when the team cannot name an owner, cannot explain the pricing unit, cannot test the rollback, or cannot prove that the metadata behind the decision is accurate. In those cases, the responsible move is to fix the operating model first.

There is also a trust boundary to respect. New visibility often exposes new sensitive information: service names, owners, dependency graphs, customer identifiers, event payload patterns, model choices, policy exceptions, or network paths. Treat that metadata like production data. It can help an operator; it can also help an attacker.

A Production Design That Would Hold Up

The production version of this pattern starts with a boundary, not a tool. The boundary might be an account, an event bus, a Kubernetes namespace, a model endpoint, a policy package, a Docker workstation profile, or a public network listener. Whatever it is, write it down in a way that another engineer can inspect without knowing the backstory.

For SageMaker Capacity Fallback, I would make that boundary visible in three places. First, the infrastructure code should show the resource, owner, and environment. Second, the runtime evidence should show that the control is active. Third, the runbook should explain what a responder does when the control is noisy, missing, or blocking legitimate work. That sounds procedural, but it is the difference between an announcement-driven adoption and a platform capability.

The evidence also needs a retention decision. Some evidence is only useful for live troubleshooting. Some evidence is needed for audit. Some evidence contains sensitive metadata and should not be available to every developer by default. Do not wait until the first incident to decide which bucket, log group, dashboard, policy report, or service catalog page is the source of truth.

The strongest design is boring in the right places. It should use a naming convention that survives copy and paste. It should include an owner tag or equivalent ownership field. It should avoid global permissions unless there is a reason. It should make deletion and rollback possible without an archaeological dig through old tickets.

The launch fact that matters here is Launch date: May 4, 2026. That is the calendar signal. The design signal is Instance pool size: up to five instance types. Those are different things. The calendar tells you when a capability exists. The design signal tells you where the capability should sit in your operating model.

The Week-Two Failure Modes

Week one usually looks good. The demo works, the new image renders, the query returns data, the endpoint reaches service, the policy test passes, or the security finding shows up. Week two is where the platform truth appears.

The first week-two failure is metadata drift. A team copies a Terraform module but changes only half the tags. A namespace is renamed. A policy exception gets added for a release and never removed. An endpoint falls back to a smaller instance type and nobody notices that latency moved from acceptable to barely tolerable. A developer exposes a local AI UI beyond localhost because it made a demo easier. Each individual mistake looks small. Together they turn a good pattern into operational folklore.

The second failure is false confidence. Fallback hardware is not automatically equivalent. A model that fits on a high-memory multi-GPU instance may need quantization or a different serving config on a smaller fallback. This is why a rollout should include negative tests. Remove a tag. Publish an event from the wrong role. Try a policy fixture that should fail. Start the endpoint with an unavailable preferred instance. Create a listener that should trigger a security review. A control that has never been forced to fail has not been validated; it has only been observed working once.

The third failure is cost invisibility. Mixed fleets complicate latency SLOs. A p5 and a g6 path may both be healthy but have different token throughput. If the pricing unit is scanned data, delivered data events, endpoint instances, policy evaluations, or inspected traffic, the runbook should name that unit directly. A graph with no cost owner is not mature. A log query with no time-window discipline is not mature. A security control that sends every byte to the most expensive destination is not mature either.

The fourth failure is ownership ambiguity. A platform team may install the control, but application teams create the workload shape that makes the control useful or noisy. If ownership is unclear, every exception becomes a negotiation. Decide in advance who can grant exceptions, who reviews them, and when they expire.

The Review Conversation I Would Want

In a real design review, I would not ask “should we use SageMaker Capacity Fallback?” That question is too broad. I would ask a smaller set of questions.

What production problem are we solving? The answer should be sharper than “better visibility” or “more security.” It should say something like: reduce incident log selection from ten minutes to one minute, prove who published to a critical event bus, survive GPU capacity pressure without a failed deployment, move away from legacy policy APIs before the removal window, or prevent public proxy abuse from becoming a billing and reputation incident.

What is the first measurable outcome? A good first outcome might be a runbook that no longer needs manual console selection, a CloudTrail query that identifies a producer role, a graph that shows an owner for every production dependency, a Kyverno test suite that blocks bad fixtures, or a flow-log query that finds unusual proxy egress. If the outcome is not measurable, the rollout will become a mood.

Who is allowed to change the boundary? This is the question that catches weak designs. If every developer can change the tags, bus policies, endpoint pools, policy exceptions, model runner exposure, or proxy listener behavior without review, the control is softer than it looks. Automation can help, but only when the rule is clear enough to automate.

What does rollback mean? For SageMaker Capacity Fallback, rollback should not mean deleting the whole stack. It may mean disabling a selector, removing a data event selector, reverting a policy to audit mode, pinning an endpoint to a known instance type, closing a public listener, or detaching a workflow from the production path. Rollback is a design artifact. It should exist before the first deploy.

First Thirty Minutes Runbook

The first thirty minutes of an incident decide whether a new control helps or becomes one more confusing system. I would keep the runbook short enough to read under pressure.

Minute zero to five: confirm scope. Identify the affected account, service, cluster, endpoint, policy, event bus, or network boundary. Do not start with a global search unless the incident is global. Narrow first. If the feature uses metadata, verify the metadata before trusting the result.

Minute five to ten: collect evidence from the system of record. That might be CloudWatch Logs Insights, CloudTrail, HCP Terraform, Kubernetes metrics, SageMaker endpoint description, SPIRE entries, Kyverno policy reports, Docker runtime state, VPC Flow Logs, GuardDuty, or Security Hub. Copy the query or command output into the incident record. Screenshots are weaker than text evidence because they are harder to diff and search.

Minute ten to twenty: decide whether the control is diagnosing, mitigating, or causing the issue. Those are different modes. A CloudTrail data event helps diagnose. A policy engine may mitigate or block. A fallback instance pool may keep service alive but change latency. A network control may stop abuse but also interrupt a legitimate integration. Name the mode before acting.

Minute twenty to thirty: choose the smallest reversible action. Narrow the query, disable the bad route, remove the bad tag, revoke the producer permission, switch policy to audit, scale the endpoint, rotate the credential, or isolate the listener. Avoid broad account-wide changes unless the risk is already account-wide.

After the incident, add one fixture, one query, one dashboard panel, or one policy test that would have made the first ten minutes easier. That is how the system improves without a giant postmortem project.

Governance That Does Not Rot

Governance fails when it depends on reminders. A quarterly review that asks every team to check every setting is not governance; it is a calendar ritual. Durable governance is closer to a compiler. It checks the same rule every time, gives a useful error, and keeps doing that after the original author leaves.

For this topic, the useful governance layer usually has four parts. The first is an infrastructure default. New resources should get the right tags, retention, policy mode, endpoint pool, or network boundary by default. The second is a validation step in CI or admission control. The third is runtime detection for things that bypass CI. The fourth is an exception process that is explicit, short-lived, and searchable.

The exception process deserves more attention than it usually gets. Every serious platform needs exceptions. The question is whether exceptions are visible debt or invisible decay. A good exception record names the owner, reason, expiry, reviewer, and compensating control. A bad exception is a comment in a pull request from three months ago.

This is where Endpoint types matters: real-time and asynchronous. It is not just a fact to quote. It is a boundary to encode in the governance process. If the capability is region-limited, preview-limited, type-limited, beta, alpha, cost-sensitive, or exposed through a specific API, the governance should reflect that exact boundary.

A Strong Default Recommendation

My default recommendation is use instance pools when production inference where GPU capacity blocks deployment or scale-out. The reason is simple: Automatic fallback beats human retry loops. But I would not turn that into a universal mandate. Use the first rollout to prove the operating model, then make the pattern a default only for the workloads that match the evidence.

The counter-recommendation matters too: use bedrock when model hosting is not a core competency. Managed model APIs can remove endpoint operations entirely. A mature platform team can say no to a good tool when the timing, ownership, or failure mode is wrong. That is not resistance. That is engineering.

The article is worth sharing only if it helps somebody make a decision. For SageMaker Capacity Fallback, the decision is not whether the feature is cool. It is whether your team can connect the feature to ownership, evidence, cost, rollback, and a runbook that still works when the person who wrote it is asleep.

Final Production Checklist

Before I would call SageMaker Capacity Fallback production-ready, I would expect eight plain pieces of evidence. There should be an owner, and that owner should be a team, not a person. There should be a rollback command or configuration change that has been tested outside production. There should be a cost note that names the billing unit. There should be an alert or dashboard that proves the control is alive. There should be at least one negative test showing what happens when the control blocks, misses, or falls back. There should be a documented exception process with expiry. There should be an internal link from the service catalog, runbook, or platform docs so responders can find the pattern. And there should be one scheduled review that checks whether the assumptions are still true after the first month.

That sounds like more work than turning on a feature. It is. But this is the work that makes a feature worth sharing with a serious engineering team. Vendor pages explain what is possible. Platform articles should explain what survives contact with production.

The Bottom Line

The useful version of SageMaker Capacity Fallback is not “turn it on.” It is a small, owner-aware, measured rollout that makes production easier to operate after the launch-day excitement is gone.

Sources

• AWS ML Blog: capacity-aware inference
• SageMaker docs: deploy to multiple instance types with instance pools
• SageMaker endpoint API reference
• SageMaker monitoring with CloudWatch
• SageMaker pricing
• SageMaker asynchronous inference autoscaling
